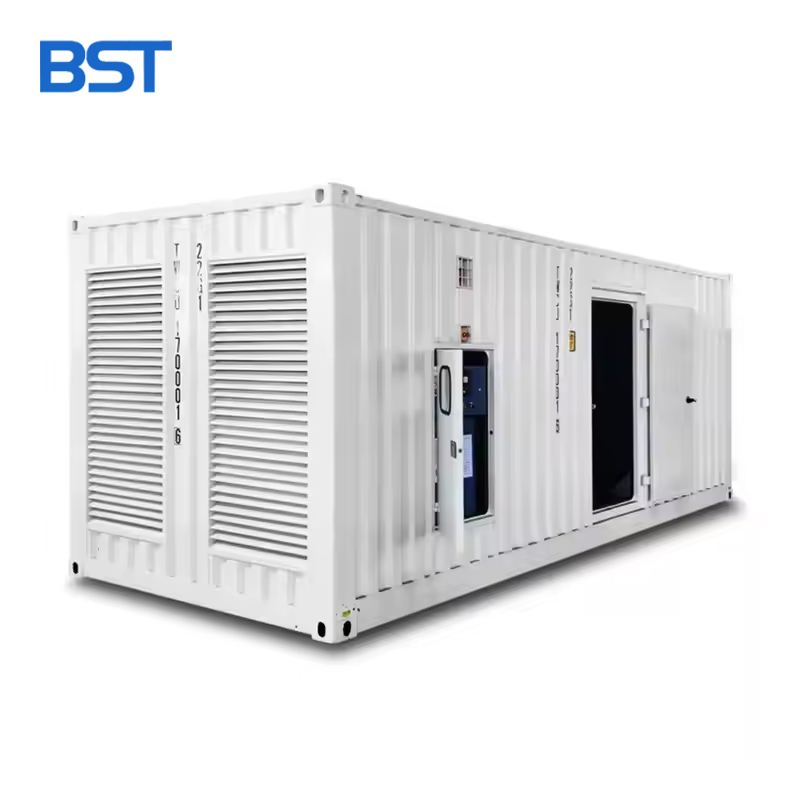

Top Sales 300kw 350kva Container Type Diesel Generator Sets with Waterproof Design

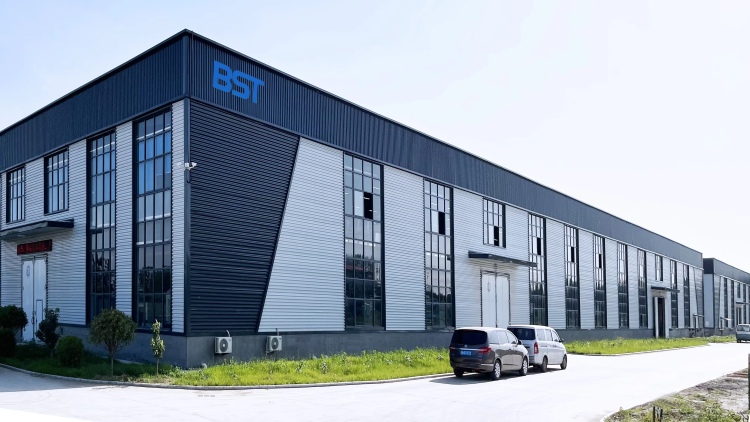

Jiangsu Besten Machinery manufacture CO.; LTD is located in the beautiful scenery of Nanjing city Lishui district Mingjue Industrial Park, plant area of 26000 square meters, registered capital of 36 million is professional engaged in the import, domestic generators, automatic generating sets, silent generator unit and mobile power plant production and sales of integrated industrial company.

1. Product Features:
Onboard Loading Capability:
Powder-Coated Shell with Integrated Soundproofing:
The shell is powder-coated and meshed, with sound insulation and fireproof cotton inside, which is beautiful and rust-proof, further reducing noise. The thickness of the sound insulation cotton is 50mm, and the insulation effect is good.
Non-Slip Patterned Steel Maintenance Floor:
The 5mm thick patterned steel plate floor is beautiful and non-slip, which is convenient for unit inspection and maintenance.

2.Smart Control System
BST Intelligent Control System: Upon detection of mains failure or start signal input, the unit initiates automatic startup after configurable delay (0-30s) with programmable restart attempts (1-8 cycles), achieving >99% first-start success rate.
Seamless Power Transfer: Automatically energizes connected loads after confirming generator voltage stabilization.
Grid Restoration Protocol: When utility power resumes, executes adjustable cool-down shutdown (0-300s duration) post-confirmation delay (0-30s).
Integrated Protection & Monitoring: Features essential protective functions with digital display of operating parameters including voltage, current, frequency, runtime, battery status, and rotational speed.
Parameters
Genset Parameters | ||||||||
Genset Model | Prime Power | Standby Power | Prime Current (A) | Standby Current (A) | Net Weight (KG) | Overall Dimensions L*W*H (m) | ||
KW | KVA | KW | KVA | |||||
BST-48GF | 48 | 60 | 53 | 66.25 | 86.4 | 95.4 | 967 | 1.54*0.97*1.36 |
BST-64GF | 64 | 80 | 70 | 87.5 | 115.2 | 126 | 1207 | 1.54*0.97*1.36 |
BST-120GF | 120 | 150 | 132 | 165 | 216 | 237.6 | 1602 | 2.5*1.12*1.47 |
BST-160GF | 160 | 200 | 176 | 220 | 288 | 316.8 | 1695 | 2.8*0.9*1.69 |
BST-200GF | 200 | 250 | 220 | 275 | 360 | 396 | 1895 | 2.87*0.9*1.69 |
BST-280GF | 280 | 350 | 320 | 400 | 504 | 576 | 2775 | 3.4*1.13*2.02 |
BST-320GF | 320 | 400 | 360 | 450 | 576 | 648 | 2925 | 3.4*1.13*2.06 |
BST-364GF | 364 | 455 | 400 | 500 | 655.2 | 720 | 3450 | 3.76*1.13*2.06 |
BST-400GF | 400 | 500 | 440 | 550 | 720 | 792 | 3570 | 3.76*1.13*2.06 |
BST-480GF | 480 | 600 | 528 | 660 | 864 | 950.4 | 3975 | 3.76*1.54*2.13 |
BST-520GF | 520 | 650 | 560 | 700 | 936 | 1008 | 4075 | 3.76*1.54*2.13 |
Q1: What is the rated power range of your diesel generator sets?
A: Our diesel generators are available in a comprehensive power range from 6 KVA to 3,000 KVA, covering both standard and industrial applications.
Q2: What is the difference between prime power and standby power?
A: Prime power generators sustain long-term operations like mining sites, while standby units provide emergency backup for hospitals - key differences being runtime limits and load management systems.
Q3: How much fuel can I save compared to older generator models?
A: With our Smart ECO Mode, fuel consumption drops by 22% versus conventional models at partial loads.
